| Content |
| Description of Goods |
Technical Compliance |
| Product Name |

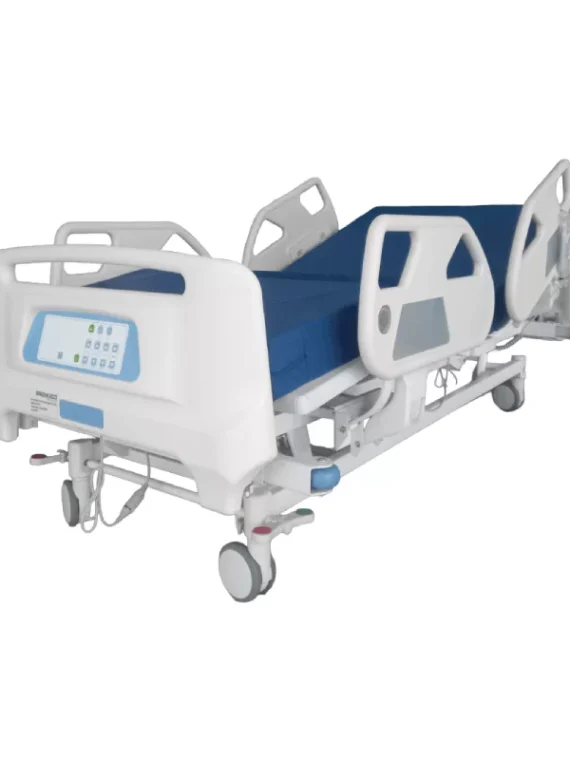

Five Function Electric ICU Bed |
| Features |
- Minimum 4 (Four) motor system
- Electrical adjustments of backrest, footrest, height, Trendelenburg and Reverse Trendelenburg
- Various positions Fowler, Vascular and Cardiac
- Auto contour for optimum positioning to evenly distribute and to help prevent patient from sliding towards fool end of the bed
- Hand control unit
- Auto-CPR button and Manual CPR for backrest.
- CPR switch, in the event of the bed occupant suddenly requiring cardiopulmonary resuscitation the bed can be flattened within few seconds without sudden fall of the backrest (Automatic and Manually).
- The spring / Hydraulic system, which ever you are giving, should be easily cleanable corrosion resistant and decontaminated desire life span of ICU Bed recommended by manufacturer.
- Auto-regression system,
- Waterproof Nurse Control panel with backlight system.
- Single button option for Trendelenburg, Cardiac, Examination, Vascular and Patient Evacuation.
- Flashlight / LED light feature integrated on nurse control panel,
- Detachable stainless (Medical Grade-ASI-316) & HIPL structure, ABS /Polyethylene resin/ Polypropylene head and foot boards with push handles & angle indicator
- Easily cleanable, lockable and fold-down ABS / Polypropylene/Powder coated steel/Polyethylene resin & should have non-slip grip & lockable when pressure applied over side rail by the patient or anybody.
- 4 section, detachable easy cleanable HPL mattress platform
- Lwering the height till 45-75 cm or more with nurse control to ensure safety and easy use
- Sub frame constructed with stainless non-magnetic steel (Medical Grade-ASI-316)/Epoxy Powder coated steel
- Gradually adjustable footrest
- Drainage bag hooks at both sides
- IV pole sockets located at four corners
- Height adjustable non-magnetic stainless steel (Medical Grade-ASI-316) IV pole and IV pole max height 1.5m +10% approx. of same brand.
- The bed mounted on two or more telescopic columns or robust scissor mechanism.
- Have protective Corner roller bumpers at four corner.
- 360 degree swivel and central lockable castors & can be fixed unidirectional during bed movement
- X-ray cassette holder at backrest
- Liquid ingress protection
- Built in Battery backup function minimum 30 minutes after main power failure.
|
| Technical Specifications |
- Bed Dimensions: 103 x 228 cm + 10%
- Height Adjustment (without mattress): min. 45-75 cm or wider range (approx.) (adjustable with bed dimensions)
- Mattress Platform: min. (88 x 200)cm + 5%
- Backrest angle: 0° – 64° or more
- Footrest angle: 0° -21° or wider
- Trendelenburg angle: 0° -12° or more
- Reverse Trendelenburg angle: 0° -13° or more
- Castor diameter: min. 125 mm.
- Under bed clearance: min, 8cm at height of 34 cm
- Safe Working Load: 220 kg or more.
- Power input: 220 + 10% VAC, 50Hz
|
| Mattress Specification |
- Foam Mattress consists of foam with a density of 38 kg/m3 foam and cuttings over the full width of the mattress.
- CNC cutting reducing contact points so distribute and reduce pressure on human body.
- Air passages, provide air circulation and prevent heat accumulation.
- Air passages reduce perspiration.
- Provides with anti-bacterial, waterproof, and breathable cover.
- Optimal thickness is 15 cm
- Size: adjustable with mattress platform according to manufacturer’s standard.
- Density: 38±2kg/m3
- Cleaning: Autoclavable at 80 deg
- Cover should be Flame resistant, Durable, Urine and blood resistance, Scratch-proof, Dirt resistant, Antibacterial & Antifungal, Water vapor permeable, Resistant to conventional disinfectants.
|
| Bedside Locker Specifications |
- ABS /Polypropylene/ Polyethylene resin Platform
- Epoxy painted metallic construction.
- Diagonal lockable castors.
- External Dimensions: min. (45 x 45 x 78 cm. (± 5%).
|
| Supplied with bed standard accessories. |
- Oxygen bottle Holder-01 nos.
- File Holder-01 nos.
- Lifting pole-01 nos.
- IV pole-01 nos.
- Mattress-01 nos.
- Bedside Locker-01 nos.
- Adjustable food tray with four lockable castor- 1 nos.
|
| Quality Standards & Safety |
- US-FDA/CE approved
- Brand and Model engraved/embossed/printed
- Country of manufacturer and country of shipment same Bangladesh
|
| Warranty, Spare Parts Availability & After Sale Service |
-
- Comprehensive 1 (one) year warranty with all spare parts and accessories (without consumables) after the date of installation & commissioning (functioning).
- Availability of spares parts must be for 3 years after the date of installation & commissioning (functioning).
|
| TECHNICAL SPECIFICATION
- Size: L-2080 x W-915 x H-915 mm.
- Standard type No Function Bed made of steel frame with ABS plastic.
- Removable & interchangeable high quality beautiful ABS engineering
- Plastic head panel and foot panel.
- Structure are made of MS tube & sheet with zink phosphating powder coating paint.
- Provision for I.V. Rod on both sides of the bed.
STRANDED ACCESSORIES
- Mattress
- 2" Single part foam mattress with washable rexene.
- One adjustable IV pole is provided with the bed.
- Plastic inner stopper.
| |
- Size: L-2000 x W-900 x H-500 mm
- Standard Two Function Manual ICU Bed with mechanically operated backrest 80 degrees and knee rest 70 degrees by super smooth crank mechanism.
- Bed frame made from mild steel rectangular tubes. head and leg guard made by ABS materials. 5 sticks collapsable side rails.
- Individual Locking Castors dia 125mm.
- Net weight: 48 +- 2
- Gross Weight: 54 +- 2
- Load Barring Capacity:200 KG
- Warranty: 1 Year
|
- Size: L-2000 x W-900 x H-500 mm
- Backrest and Leg rest adjustment with electric motors.
- Bed framework made from mild steel ERW rectangular tubes.
- MS Collapsible side railings with locking system (set of 2).
- 360 rotatable castor 4 nos with braking in all (125 mm).
- Net weight: 48 +- 2
- Gross Weight: 54 +- 2
- Warranty: 1 Year
- Load Barring Capacity:200 KG
|
|
- Size-L-1830,W-600, H-750mm
- Main frame made By 32X1.2mm MS tube.
- The head side adjusts by an Angle crack mechanism.
- Leg rest waste drainage system two little wast capacity.
- 90-degree leg folding.top frame covered by foam and rexin.
- Frame zink phosphate powder paint.
|
